KONEKT: ConnectEDA™

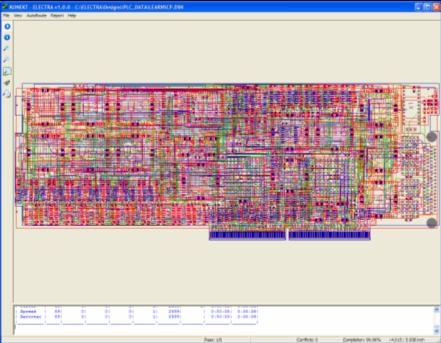

ELECTRA™ is a new generation of Shape-Based Autorouting software for PC boards. ELECTRA™ uses a multi-pass cost-based conflict reduction algorithm to find a routing solution adapting to the natural flow of the nets. Adaptive routing algorithm is the only proven approach to reach high completion rate. ELECTRA™ gives immediate feedback on the routing progress and conflict reduction rate.
ELECTRA™ uses industry standard format by reading design file (DSN). Routing results are saved into standard route file format (RTE) or session file (SES). ELECTRA™ is designed to Plug-and-Play into an existing CAD system supporting DSN file format and embedding the rules constraints into the transferred DSN file.
ELECTRA™ Configurations
- ROUTE 2L - for single and double sided boards $ 650.00
- ROUTE 4L - for a maximum of four signal layers $1,000.00
- ROUTE 6L - for a maximum of six signal layers $2,000.00
- ROUTE UL - for a maximum of 256 signal layers $3,300.00
- All configurations support unlimited number of pins, power and ground layers
- All configurations include advanced rule support and mitering capability
- Annual Maintenance Contract is 15% per year
- Networked License available on 6L and UL 30% up grade fee
